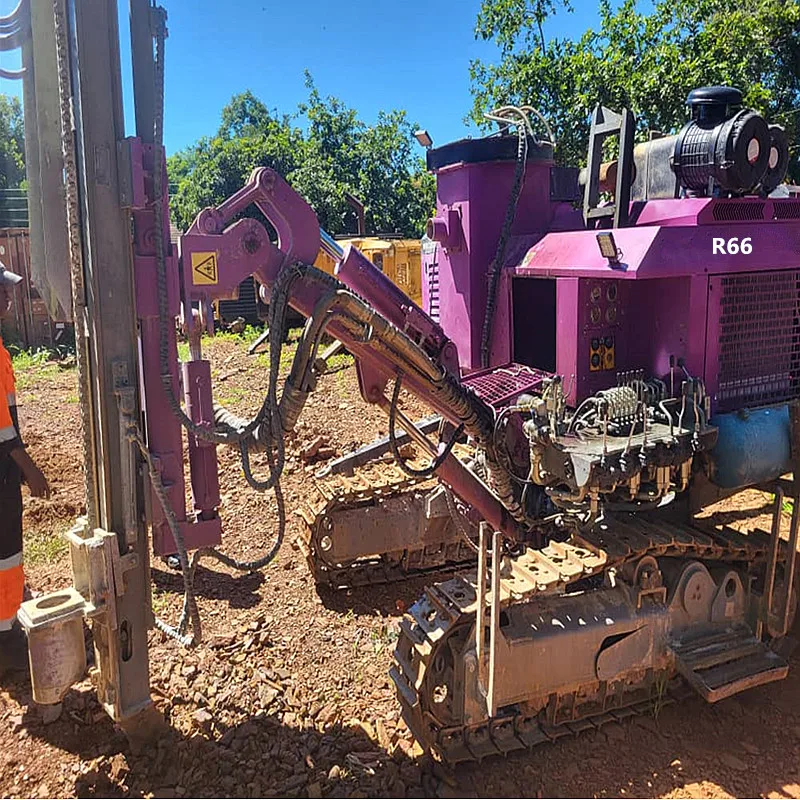

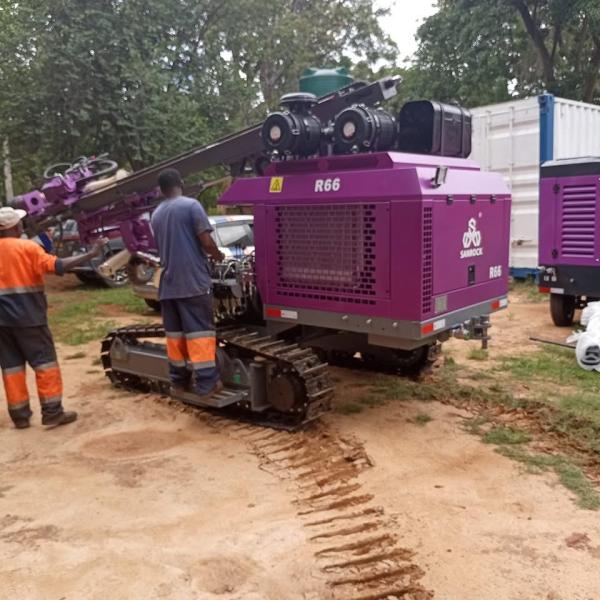

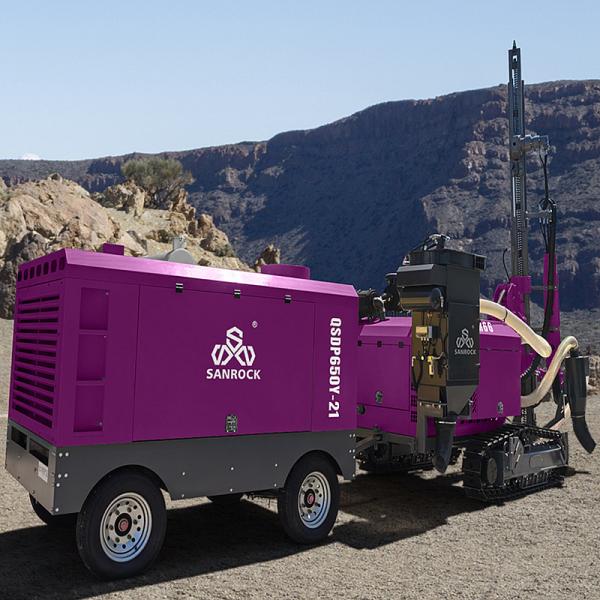

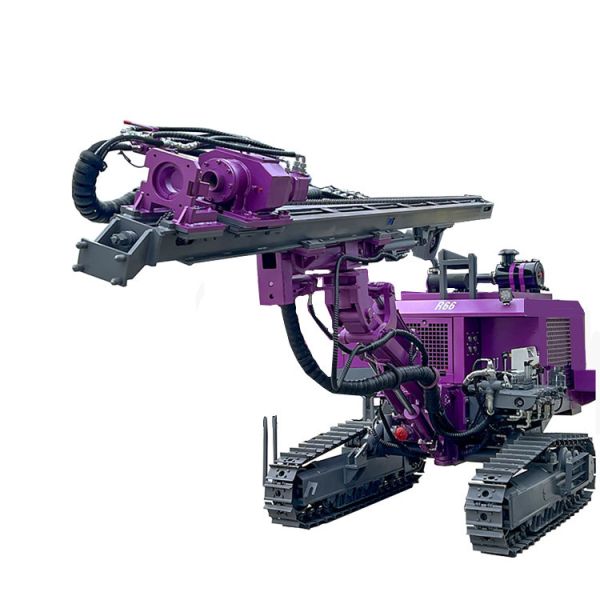

Surface Drilling Rig Hydraulic DTH Drilling Machine High Efficiency Portable DTH Hammer Drilling Rig

Name: Surface Drilling Rig Hydraulic DTH Drilling Machine High Efficiency Portable DTH Hammer Drilling Rig
Brand: SANROCK
Price: 1 USD

Buy cheap Surface Drilling Rig Hydraulic DTH Drilling Machine High Efficiency Portable DTH Hammer Drilling Rig product

Brand Name : SANROCK

Model Number : R66

Certification : IOS9001 CCC

Place of Origin : Zhejiang, China

MOQ : 1

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Supply Ability : 1000 Set/Sets per Month

Delivery Time : 15-25days

Packaging Details : in wooden box, then in container

Type : Rotary Drilling Rig

Power type : Diesel,Electric,Air motor

Weight : 6500kg

Dimension(l*w*h) : 6000*2380*2600mm

Power(w) : 73.5KW

Drilling depth : 50m

Drilling diameter : 90-200mm

Product name : dth drilling rig

Name : Hydraulic DTH drilling rig

Application : Mining,quarry,drilling blast hole,mining and construction

Rotational torque : 5000N.M

Rotate speed : 0-180r/min

Working pressure : 1-2.4Mpa

Lifting force : 35KN

Air consumption : 14-35m3/min

Drill rod length : 3.0m

Drill rod diameter : 76mm

Feature : High Efficiency,Competitive Price

Contact Now

Separated Crawler Drilling Rig Rotary Borehole Drilling Machine
DTH hammer drilling rig is a highly efficient drilling system designed for rock blasting and foundation engineering in mining, quarrying, and construction applications.
The system's low-vibration, low-noise design ensures minimal environmental impact while maintaining operator comfort. Commonly used for blast hole drilling, soil sampling, and rock anchoring, this rig combines diesel/electric power options with advanced dust suppression systems to meet modern engineering and environmental standards.

Surface Drilling Rig Hydraulic DTH Drilling Machine High Efficiency Portable DTH Hammer Drilling Rig

At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

1. This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.
2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.
3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency. Hole range up to 127mm.
4.All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.
5.Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.

Surface Drilling Rig Hydraulic DTH Drilling Machine High Efficiency Portable DTH Hammer Drilling Rig

Products Description

Product name: DTH drilling rig
Name:R66
Brand Name:Sanrock
Method of Feed:Cylinder+Chain
Rotary Torque(Max.):5000N.M
Lifting Force:35KN
Rotary Torque(Max.):2500N.m

Power:73.5KW
Drilling Depth:50M
Rotary Speed:0-180r/min
Drilling Diameter:90-200mm
Working Pressure(bar):1-2.4Mpa
Air Consumption:14-35m3/min
Travelling Speed:3km/h
Dimension(LWH):600023802600mm
Weight:6500 KG
Climbing Angles:30°
DTH Hammer:4"/5"/ 6"

Surface Drilling Rig Hydraulic DTH Drilling Machine High Efficiency Portable DTH Hammer Drilling Rig

Surface Drilling Rig Hydraulic DTH Drilling Machine High Efficiency Portable DTH Hammer Drilling Rig

Company Profile

Certifications

Surface Drilling Rig Hydraulic DTH Drilling Machine High Efficiency Portable DTH Hammer Drilling Rig

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
