1.This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.
2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.
3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency.
4. All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.
5. Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.
Products Description
|

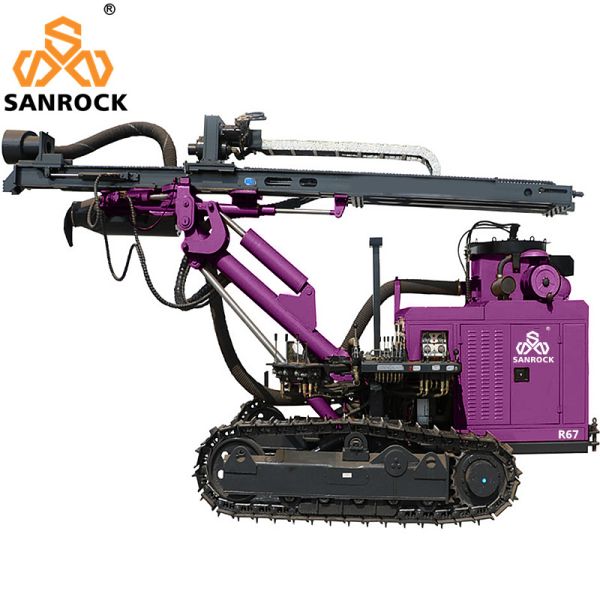

Product name: DTH drilling rig
|
|
Name:R67
|
|
Brand Name:Sanrock
|
|
Method of Feed:Cylinder+Chain
|
|
Rotary Torque(Max.):5000N.M
|
|
Lifting Force:45KN
|
|
Power:70KW
|
|
Drilling Depth:30M
|
|
Rotary Speed:0-120r/min
|
|
Drilling Diameter:105-220mm
|
|
Working Pressure(bar):1-2.4Mpa
|
|
Air Consumption:13-22m3/min
|
|
Travelling Speed:2.5km/h
|
|
Dimension(L*W*H):5800*2330*2500mm
|
|
Weight:7200 KG
|
|
Climbing Angles:30°
|
|
DTH Hammer:4"/5"/ 6"
|
|
Company Profile
1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.
2.How can I make payment?
A: You can pay directly online on with credit card, or TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
